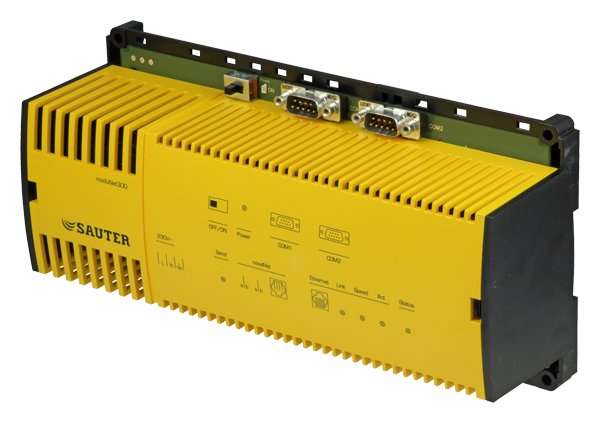

novaNet-BACnet application master, moduNet300
EY-AM 300
How energy efficiency is improved
Open communication allowing all parts of the optimised plant to operate together
funkcje
-
Part of the SAUTER EY-modulo 2 system family
-
BACnet application master for novaNet
-
To integrate novaNet stations (EY3600, EY-modulo 2) in BACnet/IP systems (EY-modulo 5)
-
Automatic generation of BACnet I/O objects from defined stations based on novaNet
-
Special features such as loop objects and intrinsic reporting for I/O objects
-
Objects that can be generated dynamically, such as time programmes and calendars for optimised, time-controlled installation operation
-
Trend Log objects that can be generated dynamically to analyse the installation
-
Event Enrolment objects that can be generated dynamically for individual notification
-
BACnet/IP network integration with BBMD and/or FD functionality
-
BACnet/IP communication (EN ISO 16484-5)
-
Communication with 2-wire novaNet system bus as novaNet PC
-
Six LEDs for Status, Link, Activity, Speed, novaNet Send, Power
